Banded v Belt vs Single Belt: The Difference

Both banded v belt and single belt are commonly used belt transmission methods in the field of mechanical transmission. Although they can achieve similar transmission effects, they still have significant differences in design, construction, and use. This article will delve into the differences between a banded v belt and a single belt.

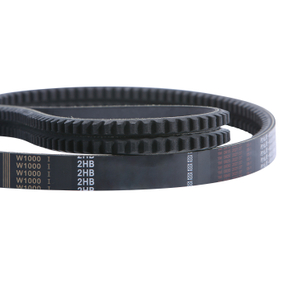

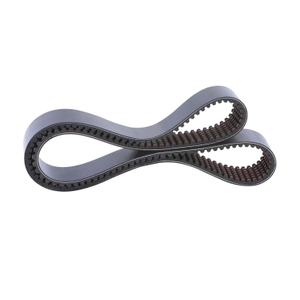

Banded v belt, also known as V-belt, is a type of V-belt made of EPDM rubber and fiber materials. It is a belt transmission method composed of two or more adjacent single belts. The banded v belt is designed with a V-belt to increase friction and achieve higher transmission efficiency. Their advantages are high load-bearing capacity and transmission efficiency, as well as good wear resistance and durability. The main drawback of banded v belts is their complex design, requiring more complex structures to support the shape of V-belts, and higher costs.

A single belt is a flat belt made of rubber and fiber materials. Unlike a combined belt, a single belt consists of only one belt. Their design is simple and their cost is relatively low. However, the load-bearing capacity and transmission efficiency of a single belt are relatively low, and its durability is also poor. Single belts are mainly suitable for smaller loads and low-speed transmissions.

Banded v belt vs single belt:the difference

1. Design and structure: The banded v belt requires a more complex structure to support the shape of the V-belt, while the single belt is a flat belt.

2. Transmission efficiency: The banded v belt has a higher transmission efficiency due to the addition of a V-belt design, while the transmission efficiency of a single belt is lower.

3. Bearing capacity: The banded v belt has a higher bearing capacity and is suitable for large loads and high-speed transmission, while the single belt has a lower bearing capacity and is suitable for smaller loads and low-speed transmission.

4. Cost: Due to the need for a more complex structure and design of the banded v belt, the cost is higher, while the cost of a single belt is relatively lower.

Overall, both banded v belt and single belts are common belt transmission methods, and they have different advantages and disadvantages in different application scenarios. When choosing a belt transmission method, it is necessary to consider factors such as load, transmission efficiency, durability, and cost.
