| Color: | |
|---|---|
| Brand Name: | |
| Length Range: | |
| Tensile Cord: | |
| EPDM(Ethylene Propylene Diene Monomer): | |
| Transport Packaging: | |
| Certification: | |
| Quantity: | |

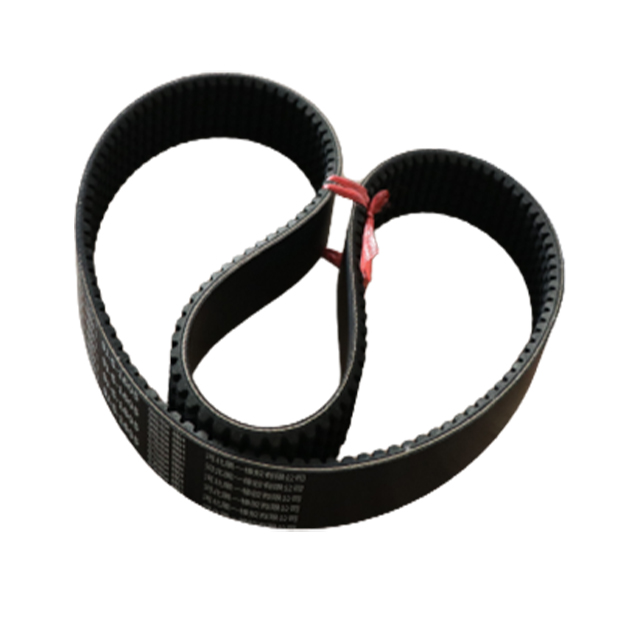

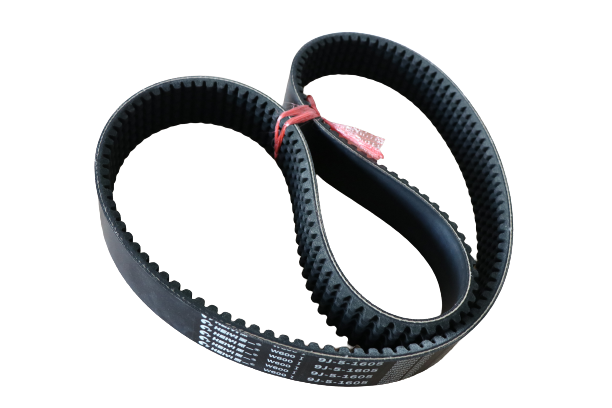

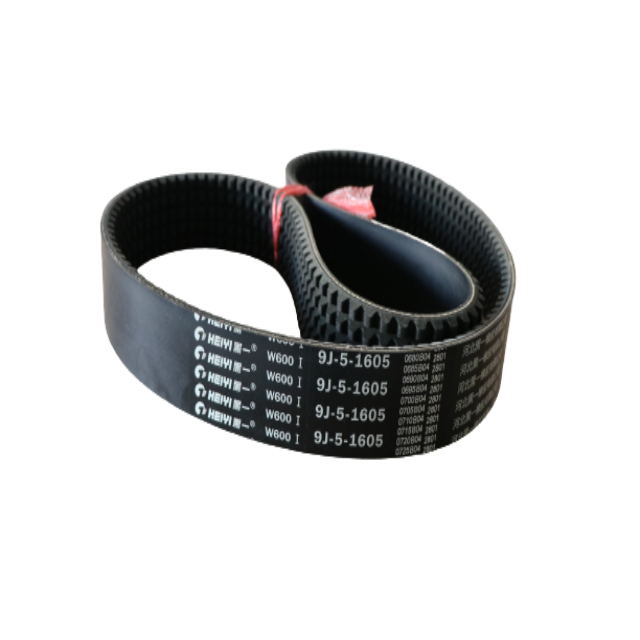

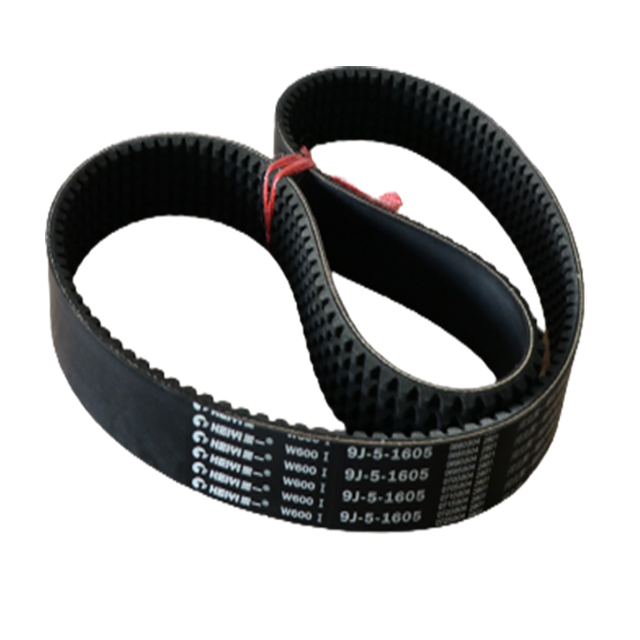

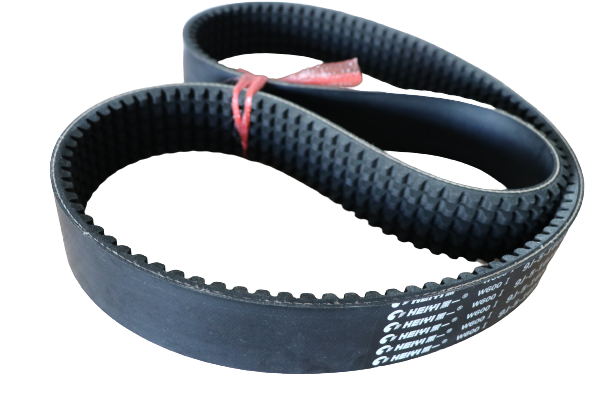

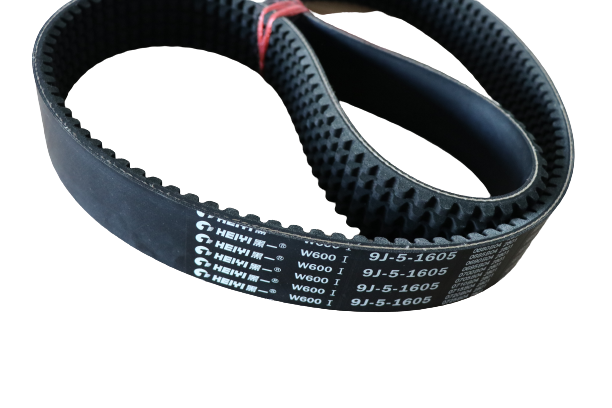

9J-5
HEIYI
4010310000
Company Profile
HEIYI founded in 1995,is the first China manufacturer of rubber transmission v belts that applies EPDM materials to toothed belts.
First of all, what are the characteristics of EPDM in terms of materials? Here I summarize as follows: Better heat resistance.
After testing, the temperature range is -40ºC to 120ºC. Compare to the traditional CR rubber has a temperature resistance of 100°C.
At present, belt manufacturers in Germany, Japan, and the United States are all making EPDM materials as their latest technology.
Our Partner
Application
Specification of V Belt
Model | Top Width(mm) | Thickness(mm) | Length Range(inch) | Length Range(mm) | Angle |
| O/AV10* | 10 | 8.5 | 19.68"-216.5" | 500-12000 | 40° |
| A/AV13* | 13 | 9.5 | 19.68"-216.5" | 500-12000 | 40° |
| B/AV17* | 17 | 14 | 19.68"-216.5" | 500-12000 | 40° |
| C/AV22* | 22 | 19 | 19.68"-216.5" | 500-12000 | 40° |
| SAx/LAx | 12.5 | 8.8 | 19.68"-216.5" | 500-12000 | 38° |
| SBx/LBx | 16.2 | 10 | 19.68"-216.5" | 500-12000 | 38° |
| SCx/LCx | 21 | 11.2 | 19.68"-216.5" | 500-12000 | 40° |
| XPA/SPAX | 12.5 | 10 | 19.68"-216.5" | 500-12000 | 40° |
| XPB/SPBX/5V | 16.2 | 13 | 19.68"-216.5" | 500-12000 | 40° |
| XPC/SPCX | 21 | 15 | 19.68"-216.5" | 500-12000 | 40° |
| XPZ/SPZX/3V | 9.5 | 8.8 | 19.68"-216.5" | 500-12000 | 40° |
| 25N/8V | 25 | 17 | 19.68"-216.5" | 500-12000 | 40° |
| HI | 25 | 13 | 19.68"-216.5" | 500-12000 | 32° |
| HJ/HDJ | 32 | 18 | 19.68"-216.5" | 500-12000 | 32° |
| HD | 32 | 18 | 19.68"-216.5" | 500-12000 | 40° |
| HK | 38 | 20 | 19.68"-216.5" | 500-12000 | 32° |
| HL | 45 | 24 | 19.68"-216.5" | 500-12000 | 32° |
| HM | 51 | 25.5 | 19.68"-216.5" | 500-12000 | 32° |
| HN | 57 | 26 | 19.68"-216.5" | 500-12000 | 32° |
| HO | 63 | 26 | 19.68"-216.5" | 500-12000 | 32° |
| 9J-5 | 50.1 | 11 | 19.68"-216.5" | 500-12000 | 40° |
| 9J-6 | 60.4 | 11 | 19.68"-216.5" | 500-12000 | 40° |
| 9J-7 | 70.7 | 11 | 19.68"-216.5" | 500-12000 | 40° |
| 3R-5V | 50 | 15.2 | 19.68"-216.5" | 500-12000 | 40° |
| 4R-5V | 67.5 | 15.2 | 19.68"-216.5" | 500-12000 | 40° |
| 4R-SPA | 60.8 | 11 | 19.68"-216.5" | 500-12000 | 38° |
| 2HB | 35 | 14 | 19.68"-216.5" | 500-12000 | 38° |
| 3HB | 54 | 14 | 19.68"-216.5" | 500-12000 | 38° |
| 4HB | 72.5 | 14 | 19.68"-216.5" | 500-12000 | 38° |
| 5HB | 91 | 14 | 19.68"-216.5" | 500-12000 | 38° |
| 6HB | 110 | 14 | 19.68"-216.5" | 500-12000 | 38° |
| 2HC | 47.5 | 16 | 19.68"-216.5" | 500-12000 | 38° |
| 3HC | 72.5 | 16 | 19.68"-216.5" | 500-12000 | 38° |
| 4HC | 98 | 16 | 19.68"-216.5" | 500-12000 | 38° |
Other special sizes v belts(such as 36*,45*,68*), banded v belts, flat belts and PK,DPK, PJ, PL, AA,BB,CC Belts are also available, if you have any need of them, please feel free to contact us. We will confirm all the details and reply you within 24 hours.
Structure of V Belt
| Function | Material | |
| Tension Member | The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers | Polyester/Aramid Fiber |
| Rubber Ribs/Teeth | Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley | EPDM |
| Backing Material | Bias ply type fabric backing resists cracking and provides abrasion resistance | EPDM |
| Insulation Material | oil and heat resistant rubber is used to bond the tension member to the rest of the belt | EPDM |
Teeth part also can be covered with Fabric, if you have any need of it, please do tell us when you placing
the order.
Advantages
1.15% capacity increase over wrapped belts
2.Superior flexibility.
3.No re-tensioning required.
4.Reduce wrapped belt drive width up to 50%.
5.Increase efficiency up to 3% over wrapped belts.
6.Use smaller diameter pulleys than wrapped belts.
7.Moulded notches reduce and evenly distribute
8.Thermal and bending stresses.
9.Reduce drive maintenance
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcomed to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
For large quantity, lead time can be negotiated.
Q3. How much is the minimum quantity for each item in one order?
One mould quantity is ok. Usually around 50pcs for small item, 10-20pcs for big item.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or
your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer 150000-200000kms warranty for auto belts; for agricultural belt and industril belts, the warranty will be different according to your quality demand.
Packing
Our usually packing: Inner plastic bag, outside with carton, outside the carton with woven bag.
warranty time
150,000-200,000kms
we have professional Service Department, Heiyi can ensure you enjoy a pleasure order experience from
beginning(get in touch with us) to end (receive your goods and after-sale service).
Factory and Workshop
46000 Squre meter workshop
Strong technical force; advanced production technology; excellent production equipment. Has 12 agricultural
machinery belt and automobile belt automatic production lines
Thousands of belts moulds in our factory
Quality Control and R&D Department
1.R & D personnel 10people, professional and technical personnel 20 people Strictly follow ISO/ TS16949:2009
quality management system
2.Professional Quality Control Department, Heiyi can ensure product quality consistently from raw material selection,
semi-finished products inspection, to finished goods.
Certification
We had got ISO/TS16949 quality certificate and 13 patent certificates
Exhibition
