Ax 91
heiyi rubber
Product Description
Advantages
. Thousands of moulds available. MOQ is based on one mould quantity
. ISO/TS16949 quality certificate
. Warranty: 150000kms-200000kms
. We could supply a whole series of auto PK belts, accept OEM
. Excellent flexibility
. High power transmission efficiency
. Reduced noise
. High grade engineered rubber
. Longer service life
. Temperature range from -40ºC to +120ºC
. Oil, heat,ozone and abrasion resistant
Specification
Model | Top Width(mm) | Thickness(mm) | Length Range(inch) | Length Range(mm) | Angle |
| O/AV10* | 10 | 8.5 | 19.68"-216.5" | 550-12000 | 40° |
| A/AV13* | 13 | 9.5 | 19.68"-216.5" | 550-12000 | 40° |
| B/AV17* | 17 | 14 | 19.68"-216.5" | 550-12000 | 40° |
| C/AV22* | 22 | 19 | 19.68"-216.5" | 550-12000 | 40° |
| SAx/LAx | 12.5 | 8.8 | 19.68"-216.5" | 550-12000 | 38° |
| SBx/LBx | 16.2 | 10 | 19.68"-216.5" | 550-12000 | 38° |
| SCx/LCx | 21 | 11.2 | 19.68"-216.5" | 550-12000 | 40° |
| XPA/SPAX | 12.5 | 10 | 19.68"-216.5" | 550-12000 | 40° |
| XPB/SPBX/5V | 16.2 | 13 | 19.68"-216.5" | 550-12000 | 40° |
| XPC/SPCX | 21 | 15 | 19.68"-216.5" | 550-12000 | 40° |
| XPZ/SPZX/3V | 9.5 | 8.8 | 19.68"-216.5" | 550-12000 | 40° |
| 25N/8V | 25 | 17 | 19.68"-216.5" | 550-12000 | 40° |
| HI | 25 | 13 | 19.68"-216.5" | 550-12000 | 32° |
| HJ/HDJ | 32 | 18 | 19.68"-216.5" | 550-12000 | 32° |
| HD | 32 | 18 | 19.68"-216.5" | 550-12000 | 40° |
| HK | 38 | 20 | 19.68"-216.5" | 550-12000 | 32° |
| HL | 45 | 24 | 19.68"-216.5" | 550-12000 | 32° |
| HM | 51 | 25.5 | 19.68"-216.5" | 550-12000 | 32° |
| HN | 57 | 26 | 19.68"-216.5" | 550-12000 | 32° |
| HO | 63 | 26 | 19.68"-216.5" | 550-12000 | 32° |
| 9J-5 | 50.1 | 11 | 19.68"-216.5" | 550-12000 | 40° |
| 9J-6 | 60.4 | 11 | 19.68"-216.5" | 550-12000 | 40° |
| 9J-7 | 70.7 | 11 | 19.68"-216.5" | 550-12000 | 40° |
| 3R-5V | 50 | 15.2 | 19.68"-216.5" | 550-12000 | 40° |
| 4R-5V | 67.5 | 15.2 | 19.68"-216.5" | 550-12000 | 40° |
| 4R-SPA | 60.8 | 11 | 19.68"-216.5" | 550-12000 | 38° |
| 2HB | 35 | 14 | 19.68"-216.5" | 550-12000 | 38° |
| 3HB | 54 | 14 | 19.68"-216.5" | 550-12000 | 38° |
| 4HB | 72.5 | 14 | 19.68"-216.5" | 550-12000 | 38° |
| 5HB | 91 | 14 | 19.68"-216.5" | 550-12000 | 38° |
| 6HB | 110 | 14 | 19.68"-216.5" | 550-12000 | 38° |
| 2HC | 47.5 | 16 | 19.68"-216.5" | 550-12000 | 38° |
| 3HC | 72.5 | 16 | 19.68"-216.5" | 550-12000 | 38° |
| 4HC | 98 | 16 | 19.68"-216.5" | 550-12000 | 38° |

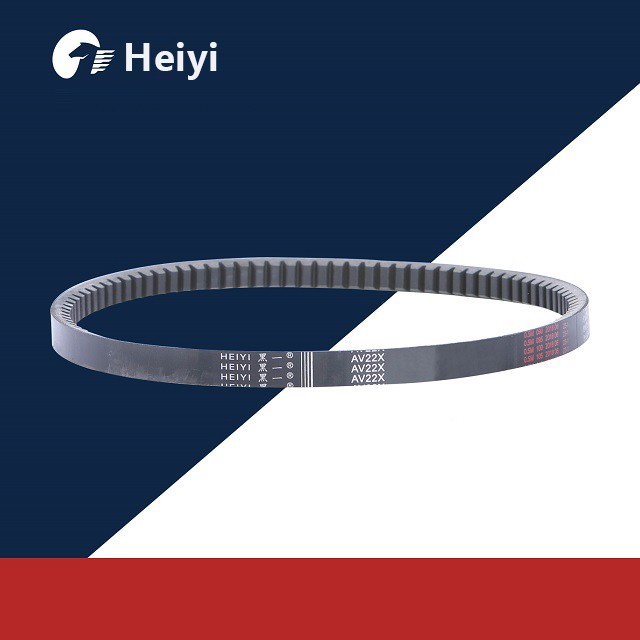

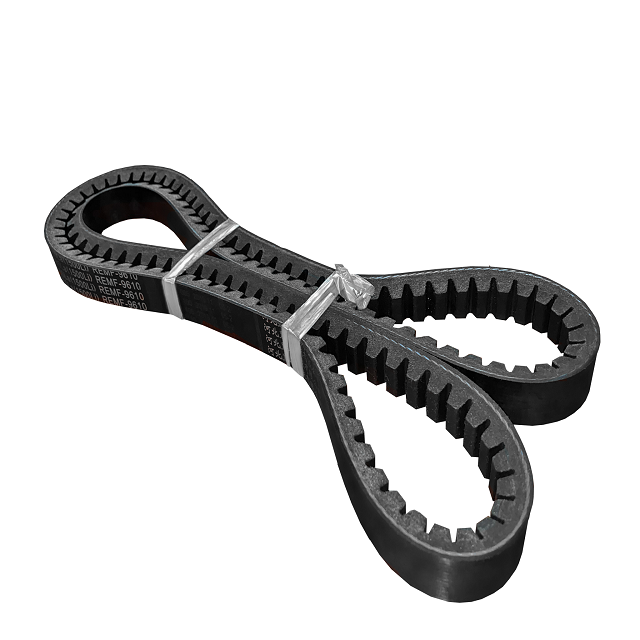

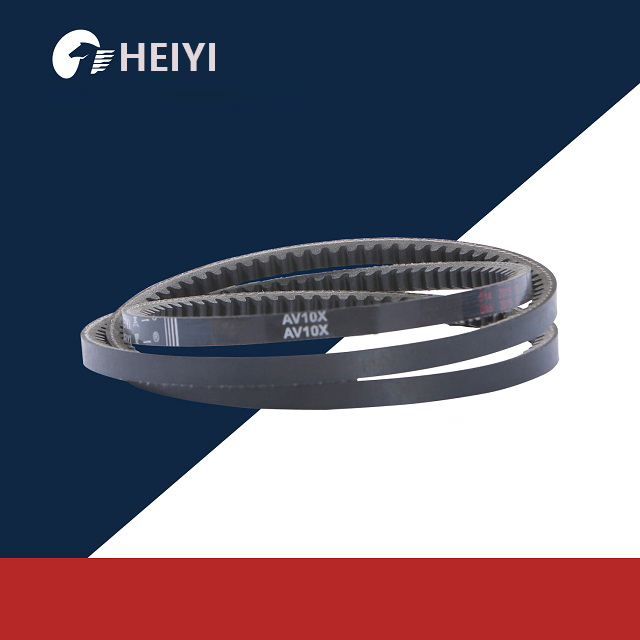

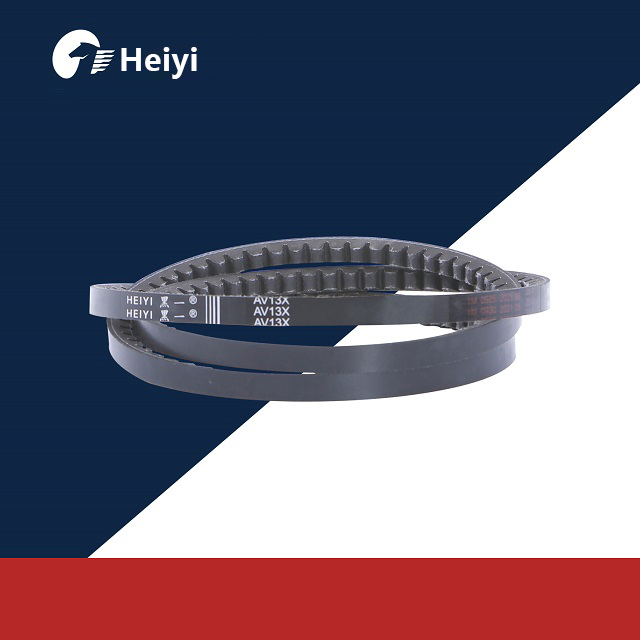

Product Image
Company Profile
Heiyi Rubber has 19 patented technologies, 12 production lines, 1000+ mold for the rubber belts. The length range of belts we produce is from 550mm to 12000mm. As the ISO/TS16949 and SGS certified manufacture, Heiyi Rubber is the director supplier for 200+ Agricultural machinery manufacturers.
Located in Julu County Industrial Park, Xingtai City, Hebei, China, Heiyi Rubber has industry-leading R&D capabilities and production capabilities. The company has repeatedly won honors such as Provincial Famous Brand, High-Tech Enterprises, and Industrial Enterprise R&D Institution A-level certificates. In 2019, the new factory equipped with internationally advanced production lines was completed and put into operation, further improving product quality and production capacity.
Factory Image
Packaging
FAQ
1.Can you supply sample?
Yes,we can supply 1-2 pcs sample.
2.Could you please OEM customer brand?
Yes,we can OEM while you send us brand certificate authorition and brand register certificate and Legal person certificate.
3.What is your MOQ?
For OEM brand our MOQ is 500-1000pcs
For HEIYI brand MOQ is 20pcs around.Different model MOQ is different.
4.What is delivery time?
It depends on our stock condition and manufacture schedule of order.
5.What kind of incoterm do you support?
EXW,FOB,CIF,CFR and so on.
6.What is your payment term?
For amount less than 30 thousand US dollar,we accept 100%TT in advance.
Other condition we could negotiate.
7.About after-sales service.
HEIYI have a complete R&D,Manufacture,Delivery,Warehouse,Logistic,Sales,After sales team on the market.
If any questions,you could feedback to our sale-representive.We will give solutions in 24 hours.
8.What is your gurantee of v belt?
For automitive rubber v belt,our gurantee time is 150000 to 200000km.
For agriculture and industrial v belt,according to differnt power loading,we have different class.
