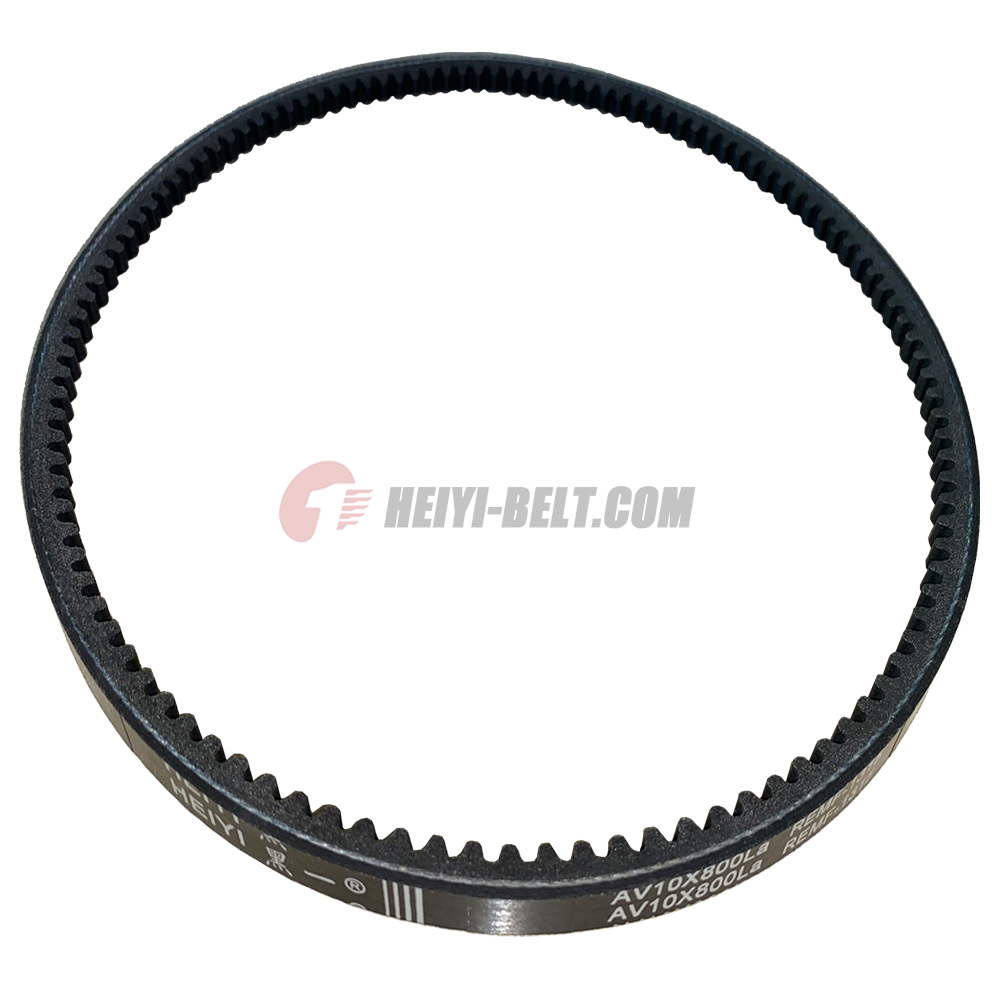

AV10X,REMF-1,O
HEIYI
91001
Model | Top Width(mm) | Height(mm) | Angle | Length Range |
REMF-1 / AV10X / O | 10.2 | 8.3 | 40° | 500-5500mm |
REMF-3 / AV13X / AX / 17- | 12.5 | 9.5 | 40° | |
| AV15X | 14.5 | 10.5 | 40° | |
REMF-8 / AV17X / BX | 16.2 | 11 | 40° | |
REMF-9 / AV22X / CX | 21 | 12.5 | 40° |
Flex-bonded tensile cords are vulcanised as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads.
Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves.
Moulded Notches reduce and evenly distribute thermal and bending stresses.
APPLICATION

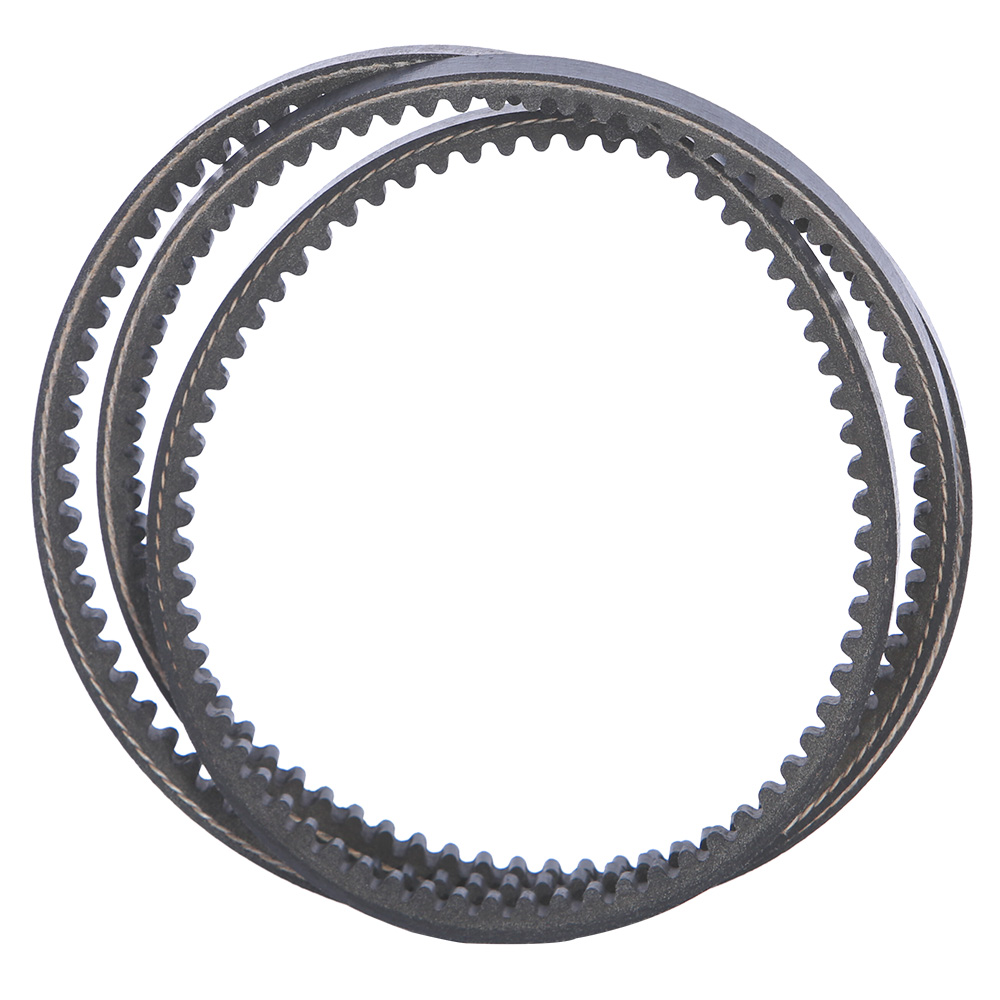

The HEIYI® RAW EDGE COGGED BELT has a wide range of applications, especially in industrial drives with high belt speeds and small belt pulley diameters. This belt allows immediate improvement of existing drives which use wrapped belt, providing overall benefits with regards to economy as well as power transmission and redial.
PLACE OF ORIGIN
China
OEM
Available
CERTIFICATION
ISO9001, TS16949，SGS
FEATURE
Heat-Resistant
Cold-Resistant
Skid-Resistance
Anti-Static
Wear-Resistant
High Temperature-Resistance
