The main advantages of toothed belts include being suitable for situations where the center distance between two axes is large, being elastic, buffering and absorbing, ensuring smooth and noise free transmission, preventing damage to weak parts during overload, ensuring accurate average transmission ratio, high transmission power, and minimal force acting on the shaft and bearings. ‌

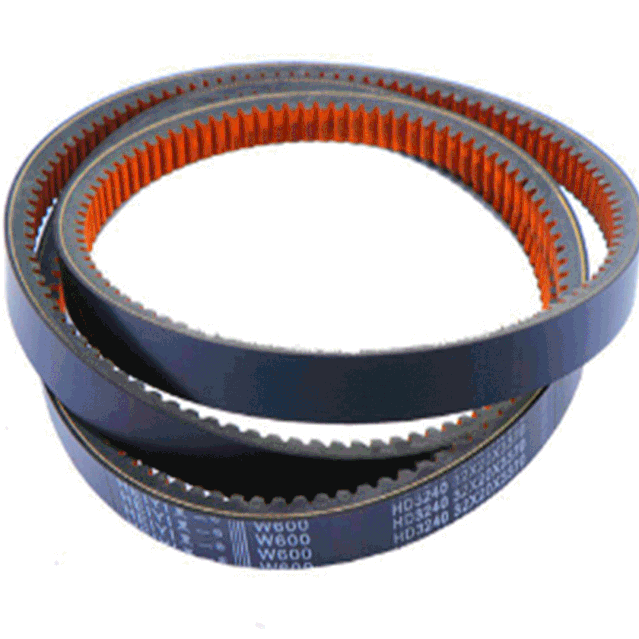

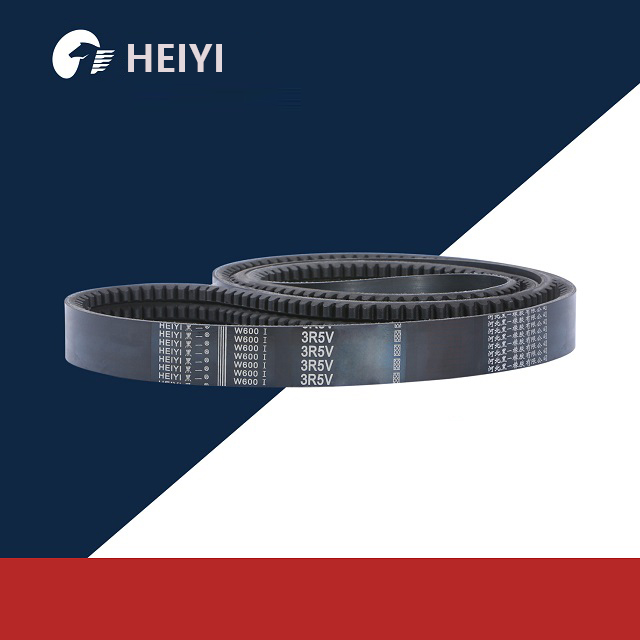

‌‌The main difference between toothed V-belt and ordinary V-belt is that the inner ring bottom of the toothed V-belt is designed to be sawtooth-shaped, while ordinary V-belt does not have this design. ‌

When selecting the model of the joint v belt, we should adapt to the selected rubber v belt, otherwise the triangular belt will have abnormal situations in the belt pulley groove. When replacing the triangular belt, it is important to bring the old belt to the agricultural machinery department for purchase to prevent the model from being mistaken. During installation, it is prohibited to use tools to pry or pull the triangular toothed belt hard to prevent the triangular belt from stretching or being too loose or too tight.

If the center distance between the two axes of the installation triangle belt is an adjustable structure, the center distance should be shortened first, and then the center distance should be adjusted according to the requirements after the tape is installed; If the center distance between the two axles is not adjustable, a rubber belt can be inserted into the wheel groove first, and then the other pulley can be rotated to install the rubber v belt.
