How to install cogged v belt, practical tutorial

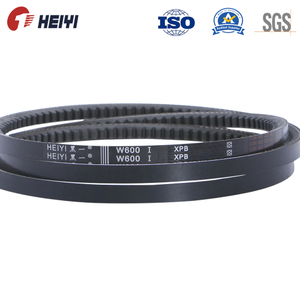

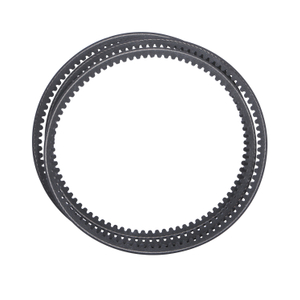

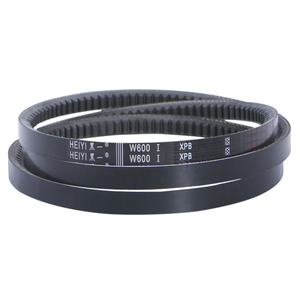

How to install the cogged v belt

1. Take the iron core from the synchronous cogged v belt coil, put on the flexible shaft, and then put the belt coil on the rack. Before putting on the shelf, special attention should be paid to not reverse the direction of the upper cover adhesive and the lower cover adhesive.

2. In the workplace that is not suitable for replacing the synchronous cogged v belt, the synchronous cogged v belt can be rolled up first, and the synchronous cogged v belt can have enough curvature radius, so as to prevent physical damage to the synchronous cogged v belt. Heavy objects should not be placed at the fold of the synchronous cogged v belt to avoid crushing the synchronous cogged v belt.

3. When disassembling the synchronous cogged v belt, it is necessary to adjust the center distance between the two synchronous cogged v belt pulleys to effectively avoid damaging the synchronous cogged v belt or equipment due to hard prying. After the synchronous cogged v belt is sleeved, adjust the center distance between the two synchronous cogged v belt pulleys to the correct position. The tightness of the synchronous cogged v belt needs to be appropriate. At this time, clamp can be used to fix one end of the synchronous cogged v belt on the conveyor frame, and then tighten the other end through the pulley until there is no obvious sag of the synchronous cogged v belt on the return idler.

4. If the old synchronous cogged v belt is replaced, the new belt can be connected with the old belt, and the belt unloading and installation of the new belt can be carried out simultaneously.

5. If it is a group of synchronous toothed belt, it needs to be replaced in groups when it is damaged. Remember not to mix new and old belts.

6. For the conveyor running horizontally, it can be cut off at any point, while for the conveyor running in the inclined direction, it is necessary to select the cut-off point to prevent the slide caused by the dead weight from losing control.

7. The synchronous cogged v belt must be correctly installed in the wheel groove. Generally, the outer edge of the synchronous cogged v belt is flush with the rim. The axes of the two pulleys shall be parallel, and the symmetry planes of the two pulleys shall coincide.

8. The transmission of the synchronous cogged v belt must be equipped with a protective cover to prevent the transmission of the equipment from being affected by the splashing of lubricating oil, cutting fluid or other liquids onto the synchronous cogged v belt, and to prevent accidents.

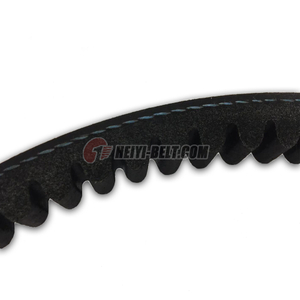

Damage form of synchronous cogged v belt

1. The belt body of synchronous cogged v belt breaks due to fatigue.

2. The teeth of the synchronous cogged v belt are sheared or crushed.

3. The belt teeth on the belt side of the synchronous cogged v belt have suffered very serious wear, and the cloth has peeled off.

4. The bearing layer of the synchronous cogged v belt is lengthened or the pitch is increased, resulting in the interference of teeth and the phenomenon of tooth climbing.

5. The synchronous cogged v belt has impact and overload, which causes the belt body of the synchronous belt to break.

6. The back of the belt body of the synchronous cogged v belt is cracked or softened.

7. The noise generated by the synchronous cogged v belt during operation is too large.

The above is a tutorial on how to install the cogged v belt and the damage form of the cogged v belt. I hope it will help you when installing the cogged v belt. You can continue to pay attention to this website and update the relevant knowledge of the cogged v belt every day.
